Vertical production machines are EMAG’s territory. It all began with the VSC series, which laid the foundation for the successful machine concept of the vertical pick-up turning center. This machine concept runs through nearly the entire product range of the manufacturer, and it takes on its latest form in the VL series. VL machines are part of EMAG’s modular standard series. As the term suggests, these machines are built on a common machine base but allow the use of an extremely wide range of technologies, similar to the modular platform systems seen in the automotive industry. There are now modular machines available for turning, gear hobbing, and chamfering processes; for grinding (chucked parts and shaft parts); for induction hardening; and also in special designs for laser welding or PECM technology. Essentially, they are available for virtually all the technologies offered by the EMAG Group.
[images type=”carousel” cols=”three” lightbox=”true”]
[image link=”4054″ image=”4054″]
[image link=”4053″ image=”4053″]
[image link=”4052″ image=”4052″]
[/images]
The machine base of these modular machines is made out of Mineralit® polymer concrete. This material has exceptional vibration damping properties, which is the basis for the machines’ excellent process quality. The working spindle is the heart of the pick-up automation system which is an essential part of every modular machine. It includes a parts storage unit in every machine, from which the pick-up spindle loads and unloads itself independently. This lowers non-productive time to an absolute minimum as there are only a few seconds between the machining processes.

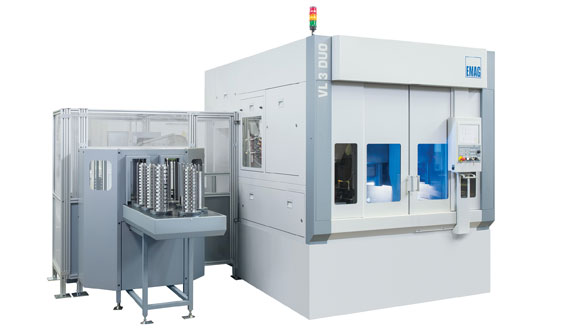

The vertical pick-up turning centers of the VL series were developed particularly for the production of precise chucked parts. There are now five versions of the VL machine to cover the widest possible range of parts. The smallest machine is the VL 2, designed for chucked parts with a diameter of up to 100 mm. It is followed by the VL 4, VL 6, and VL 8 machines which allow for an increase of 100 mm in diameter with each model increase.
